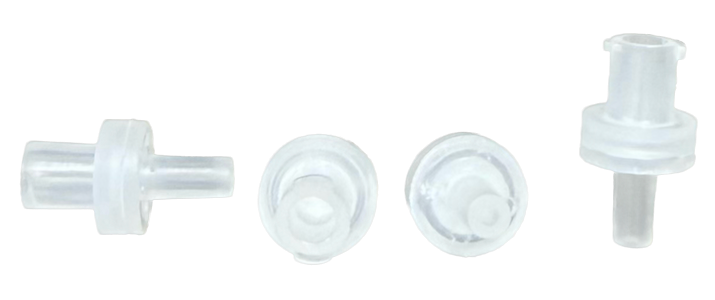

4mm Syringe Filter, Welded
1) Basic Information
| Product Name | 4mm Syringe Filter, Welded | ||
| Material | Nylon/ PTFE/ PVDF/ PES…. | ||
| Material of Housing | PP | ||
| Effective Filtration Area | 0.1 cm2 | ||
| Pore Size | 0.22 μm/ 0.45 μm | ||
| Process Volume | ＜1 mL | ||
| Application | Low-volume Sample Filtration | ||
| Package | 100 pcs Packed in one Box | ||
2） Product Overview
4 mm syringe filters are professionally engineered for micro-volume sample filtration.
The miniature structure greatly cuts dead volume to maximize recovery of rare or limited samples.
A full range of membrane materials is available: Nylon, PTFE, PVDF and PES, covering diverse application needs in chromatography, bioscience research and clinical testing.
The miniature structure greatly cuts dead volume to maximize recovery of rare or limited samples.
A full range of membrane materials is available: Nylon, PTFE, PVDF and PES, covering diverse application needs in chromatography, bioscience research and clinical testing.
3） Key Features
- Custom-developed for trace/low-volume sample pretreatment
- Ultra-low dead volume avoids waste of precious limited samples
- Multiple membrane choices: Nylon, PTFE, PVDF, PES
- Ideal for HPLC, UHPLC, LC-MS and microscale biological analysis
4） Applications
- This precision filtration solution reduces sample loss, improves testing efficiency and guarantees accurate, repeatable analytical data.
5）Ordering Information
| Cat. NO. | Diameter | Pore Size | Sterilization | Description | Package |
| Nylon | |||||
| SF04-NY22-W | 4 mm | 0.22 μm | NO | Nylon Syringe Filter, Welded | 100 pcs/pk |
| SF04-NY45-W | 4 mm | 0.45 μm | NO | Nylon Syringe Filter, Welded | 100 pcs/pk |
| PTFE | |||||
| SF04-PTL22-W | 4 mm | 0.22 μm | NO | PTFE Hydrophilic Syringe Filter, Welded | 100 pcs/pk |
| SF04-PTL45-W | 4 mm | 0.45 μm | NO | PTFE Hydrophilic Syringe Filter, Welded | 100 pcs/pk |
| SF04-PTB22-W | 4 mm | 0.22 μm | NO | PTFE Hydrophobic Syringe Filter, Welded | 100 pcs/pk |
| SF04-PTB45-W | 4 mm | 0.45 μm | NO | PTFE Hydrophobic Syringe Filter, Welded | 100 pcs/pk |
| PVDF | |||||
| SF04-PVL22-W | 4 mm | 0.22 μm | NO | PVDF Hydrophilic Syringe Filter, Welded | 100 pcs/pk |
| SF04-PVL45-W | 4 mm | 0.45 μm | NO | PVDF Hydrophilic Syringe Filter, Welded | 100 pcs/pk |
| SF04-PVB22-W | 4 mm | 0.22 μm | NO | PVDF Hydrophobic Syringe Filter, Welded | 100 pcs/pk |
| SF04-PVB45-W | 4 mm | 0.45 μm | NO | PVDF Hydrophobic Syringe Filter, Welded | 100 pcs/pk |
| PES | |||||
| SF04-PES22-W | 4 mm | 0.22 μm | NO | PES Syringe Filter, Welded | 100 pcs/pk |
| SF04-PES45-W | 4 mm | 0.45 μm | NO | PES Syringe Filter, Welded | 100 pcs/pk |
