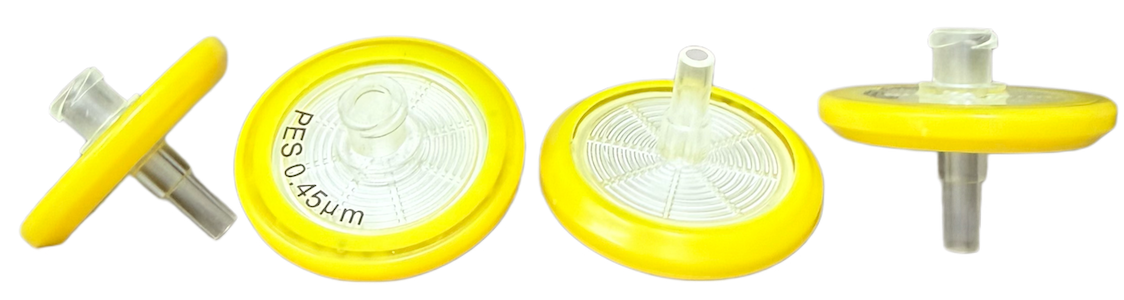

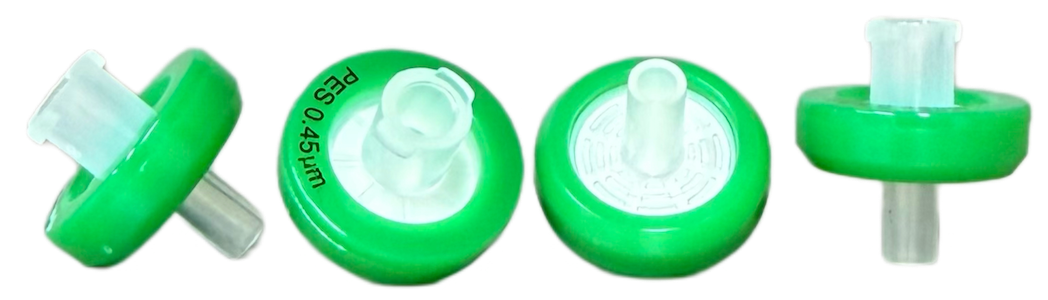

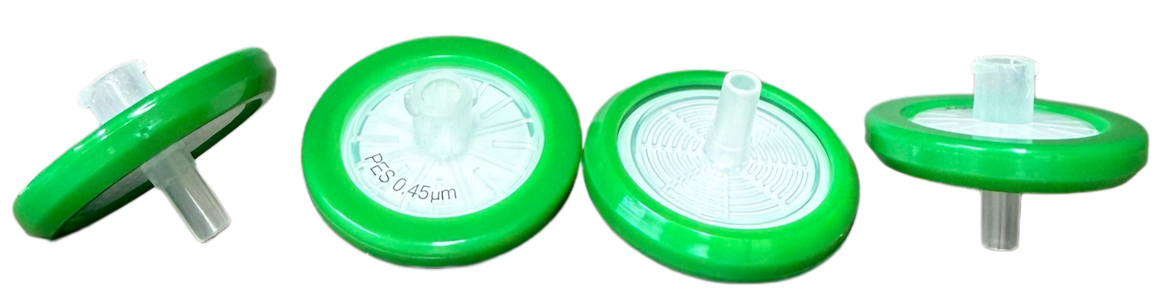

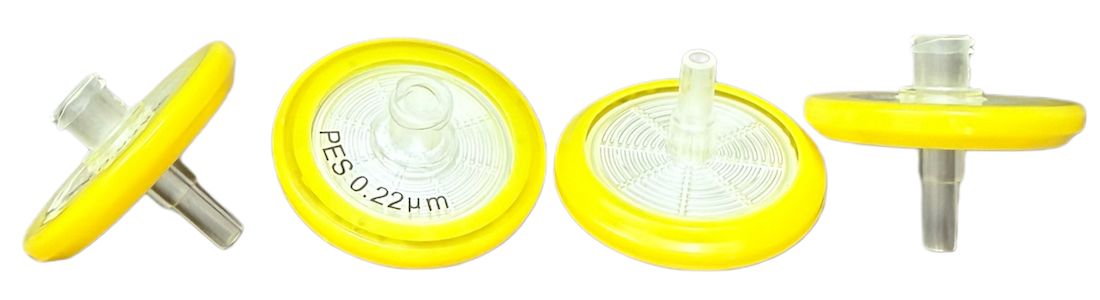

PES Syringe Filter, Outer Ring
1) Basic Information
| Product Name | PES Syringe Filter, Outer Ring | |||
| Material | PES | |||
| Material of Housing | PP | |||
| Effective Filtration Area | 13mm/1.13cm2 | 25mm/4.15cm2 | 30mm/5.20cm2 | |
| Pore Size | 0.22 μm /0.45 μm | |||
| Process Volume | ＜10mL(13mm) | ＜100mL(25mm) | ＜150mL(30mm) | |
| Maximum Operating Temperature | 90℃ | |||
| Maximum Operating Pressure | 87psi | |||
| PH | 4-12 | |||
| Application | Chemical Filtration; Beverage Filtration | |||
| Package | 100 pcs Packed in one Box | |||
2） Product Overview
- High liquid flow rate, ultra-low protein adsorption and minimal extractables.
- Low protein affinity and much faster flow speed compared to PVDF membranes; ideal for pre-filtration, buffer solutions and cell culture media filtration.
- Two standard pore sizes: 0.22 μm and 0.45 μm.
- Four outer diameter options: 4 mm, 13 mm, 25 mm, 30 mm.
3） Key Features
- Higher flow rate than PVDF filters.
- Outstanding heat resistance and broad chemical compatibility.
- Custom packaging available.
4） Applications
- PES membrane certified for ion chromatography, tissue culture medium, protein and nucleic acid filtration.
- Perfect for high-throughput filtration of aqueous solutions.
5）Ordering Information
| Cat. NO. | Diameter | Pore Size | Sterilization | Description | Package |
| SF13-PES22-R | 13 mm | 0.22 μm | NO | PES Syringe Filter, Outer Ring | 100 pcs/pk |
| SF13-PES45-R | 13 mm | 0.45 μm | NO | PES Syringe Filter, Outer Ring | 100 pcs/pk |
| SF25-PES22-R | 25 mm | 0.22 μm | NO | PES Syringe Filter, Outer Ring | 100 pcs/pk |
| SF25-PES45-R | 25 mm | 0.45 μm | NO | PES Syringe Filter, Outer Ring | 100 pcs/pk |
| SF30-PES22-R | 30 mm | 0.22 μm | NO | PES Syringe Filter, Outer Ring | 100 pcs/pk |
| SF30-PES45-R | 30 mm | 0.45 μm | NO | PES Syringe Filter, Outer Ring | 100 pcs/pk |
