PTFE Syringe Filter, Welded

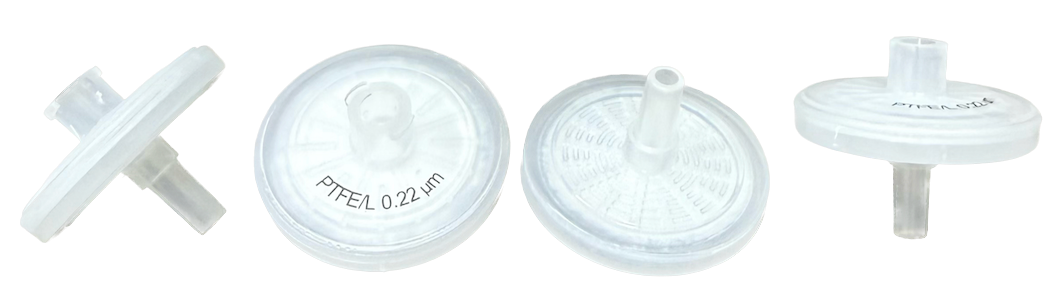

sf25 ptl22 w

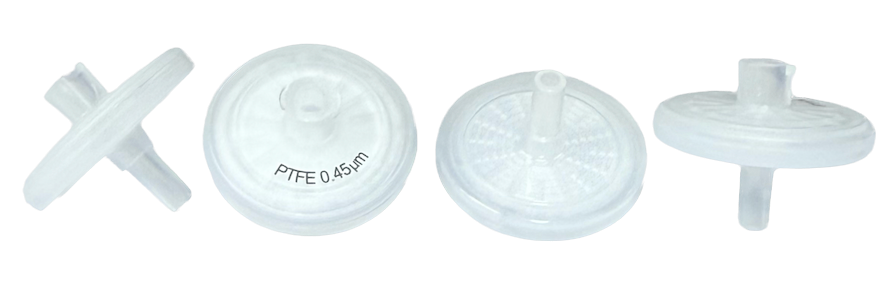

sf25 ptb45 w

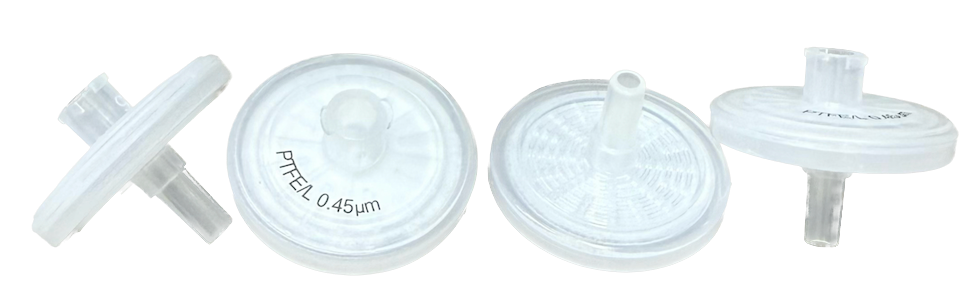

sf25 ptl45 w

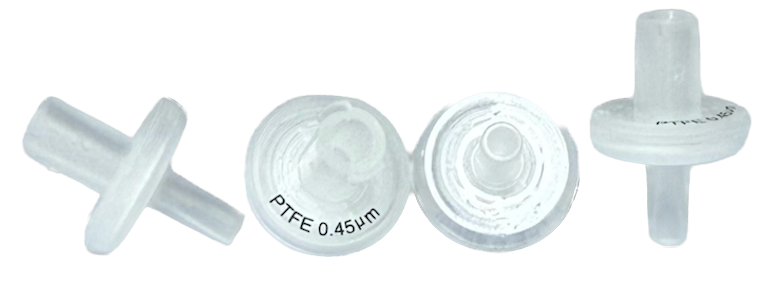

sf13 ptfe45 w

1) Basic Information

Product Name PTFE Syringe Filter, Welded
Material PTFE Hydrophilic/ PTFE Hydrophobic
Material of Housing PP
Effective Filtration Area 13mm/1.13cm2 25mm/4.15cm2 30mm/5.20cm2
Pore Size 0.22 μm /0.45 μm
Process Volume ＜10mL(13mm) ＜100mL(25mm) ＜150mL(30mm)
Maximum Operating Temperature 130℃
Maximum Operating Pressure 87psi
PH 1-14
Application Chemical Filtration; Beverage Filtration
Package 100 pcs Packed in one Box

2） Product Overview

Welded PTFE syringe filters are high-performance microporous filters for liquid separation, filtration and purification in lab and industrial scenarios.
Constructed from polytetrafluoroethylene (PTFE), the membrane delivers superior chemical inertness and tolerates all kinds of corrosive solvents and reagents, fitting diverse analytical testing workflows.


3） Key Features

  • Ultra-wide chemical compatibility for both aqueous and organic liquids; low protein adsorption
  • Hydrophobic PTFE membrane features excellent temperature resistance
  • Compatible with solvents, gases, strong acids and strong alkalis
  • Two standard pore sizes: 0.22 μm & 0.45 μm
  • Four outer diameter options: 4 mm, 13 mm, 25 mm, 30 mm
  • Custom packaging service available

4） Applications

  • Industrial chromatographic sample preparation
  • Filtration of aqueous solutions, organic solvents and chemical reagents
  • Eliminate particulate impurities, improve signal-to-noise ratio and stabilize flat chromatographic baselines
  • Degas and clarify liquid samples
  • Remove protein precipitates
  • Filtration of strong acid and strong alkaline solvents

5）Ordering Information

Cat. NO. Diameter Pore Size Sterilization Description Package
PTFE Hydrophilic
SF13-PTL22-W 13 mm 0.22 μm NO PTFE Hydrophilic Syringe Filter, Welded 100 pcs/pk
SF13-PTL45-W 13 mm 0.45 μm NO PTFE Hydrophilic Syringe Filter, Welded 100 pcs/pk
SF25-PTL22-W 25 mm 0.22 μm NO PTFE Hydrophilic Syringe Filter, Welded 100 pcs/pk
SF25-PTL45-W 25 mm 0.45 μm NO PTFE Hydrophilic Syringe Filter, Welded 100 pcs/pk
SF30-PTL22-W 30 mm 0.22 μm NO PTFE Hydrophilic Syringe Filter, Welded 100 pcs/pk
SF30-PTL45-W 30 mm 0.45 μm NO PTFE Hydrophilic Syringe Filter, Welded 100 pcs/pk
PTFE Hydrophobic
SF13-PTB22-W 13 mm 0.22 μm NO PTFE Hydrophobic Syringe Filter, Welded 100 pcs/pk
SF13-PTB45-W 13 mm 0.45 μm NO PTFE Hydrophobic Syringe Filter, Welded 100 pcs/pk
SF25-PTB22-W 25 mm 0.22 μm NO PTFE Hydrophobic Syringe Filter, Welded 100 pcs/pk
SF25-PTB45-W 25 mm 0.45 μm NO PTFE Hydrophobic Syringe Filter, Welded 100 pcs/pk
SF30-PTB22-W 30 mm 0.22 μm NO PTFE Hydrophobic Syringe Filter, Welded 100 pcs/pk
SF30-PTB45-W 30 mm 0.45 μm NO PTFE Hydrophobic Syringe Filter, Welded 100 pcs/pk
