MCE Syringe Filters, Outer Ring

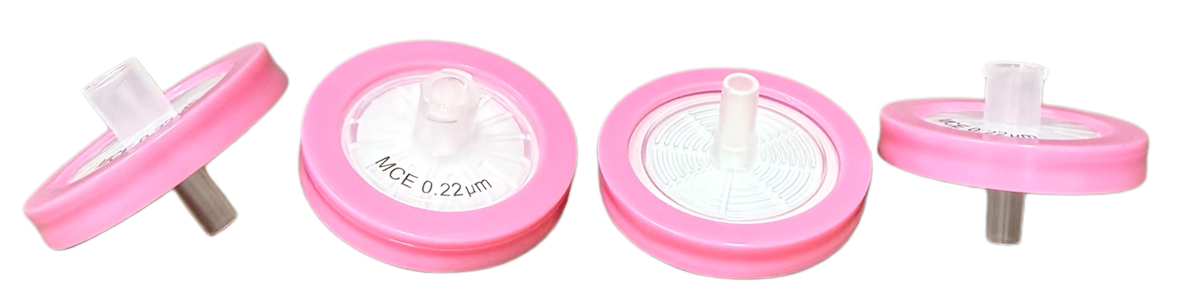

MCE Syringe Filter, Outer Ring

mce2522

1) Basic Information

Product NameMCE Syringe Filter, Outer Ring
MaterialMCE
Material of HousingPP
Effective Filtration Area13mm/1.13cm217mm/2.00cm225mm/4.15cm230mm/5.20cm2
Pore Size0.22 μm /0.45 μm
Process Volume＜10mL(13mm)＜20mL(17mm)＜100mL(25mm)＜150mL(30mm)
Maximum Operating Temperature55℃
Maximum Operating Pressure87psi
PH3-10
ApplicationChemical Filtration; Beverage Filtration
Package100 pcs Packed in one Box

2） Product Overview

Mixed Cellulose Ester (MCE) membranes are inherently hydrophilic, compounded from cellulose acetate (CA) and cellulose nitrate (CN). With a high cellulose nitrate content, MCE membranes deliver performance comparable to pure CN membranes for identical testing workflows.


3） Key Features

  • Superior hydrophilic performance
  • Minimal non-specific protein adsorption
  • High water flow rate and excellent particle interception efficiency
  • Perfect for aqueous samples, cell culture and delicate biological specimens
  • Limited resistance to strong chemical solvents
  • Sterilization method: dry heat autoclaving at 121°C for 15 minutes

4） Applications

  • HPLC sample pre-treatment
  • Routine quality control testing
  • Content uniformity verification
  • Separation of protein precipitates
  • Pharmaceutical dissolution testing
  • Food component analysis
  • Biofuel detection
  • Environmental water & solid sample testing

5）Ordering Information

Cat. NO.DiameterPore SizeSterilizationDescriptionPackage
P0313713 mm0.22 μmNOMCE Syringe Filter, Outer Ring100 pcs/pk
P0313813 mm0.45 μmNOMCE Syringe Filter, Outer Ring100 pcs/pk
P0313917mm0.22 μmNOMCE Syringe Filter, Outer Ring100 pcs/pk
P0314017mm0.45 μmNOMCE Syringe Filter, Outer Ring100 pcs/pk
P0314125 mm0.22 μmNOMCE Syringe Filter, Outer Ring100 pcs/pk
P0314225 mm0.45 μmNOMCE Syringe Filter, Outer Ring100 pcs/pk
P0314330 mm0.22 μmNOMCE Syringe Filter, Outer Ring100 pcs/pk
P0314430 mm0.45 μmNOMCE Syringe Filter, Outer Ring100 pcs/pk
